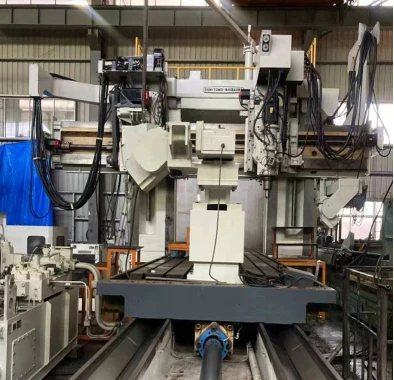

Guide Rail Grinder KSL-1550N: Precision Grinding for Large-Scale CNC Applications
The Guide Rail Grinder KSL-1550N is designed for the high-precision grinding of machine tool guide rails, ensuring maximum stability and accuracy for large CNC machines. With a workbench load capacity of 7500 kg and a workbench area of 1700 x 6360 mm, this grinder is engineered to handle large, heavy workpieces with ease, making it ideal for industries like aerospace, automotive, and heavy machinery.
Built for Heavy-Duty Grinding: High-Capacity Features for Large Workpieces
The KSL-1550N offers outstanding grinding capacity with impressive travel and movement ranges, ensuring precision and versatility in your operations:
Workbench Load Capacity: 7500 kg, capable of handling large, heavy workpieces.
Workbench Area: 1700 x 6360 mm, providing ample space for extended guide rails and machine beds.
X-Axis Travel: 5800 mm, designed for larger workpieces with high precision.
Y-Axis Travel: Forward 850 mm, reverse 2000 mm, offering flexible grinding capabilities.
Z-Axis Travel: 700 mm, supporting vertical movement for complex grinding tasks.
Guide rail grinder
| Items | unit | KSL-1550N |
| Worktable area | mm | 1700×6360mm |
| Worktable load | KG | 7500KG |
| Worktable travel distance (X-axis) | mm | 5800mm |
| Horizontal grinding wheel head left and right travel distance (Y-axis) | mm | 正向850mm 反向 2000mm |
| Horizontal grinding wheel head rotation speed | rpm | 700~1200rpm |
| Vertical grinding wheel head left and right travel distance (Y1-axis) | mm | 正向 1650mm 反向 1150mm |
| Vertical grinding wheel head rotation angle | ˚ | ±90˚ |
| Vertical grinding wheel head vertical travel distance (Z1-axis) | mm | 700mm |
| Gantry width | mm | 1810mm |
| Working height | mm | 1500mm |
High-Precision Grinding for Optimal Results
The KSL-1550N uses advanced grinding wheel systems for highly precise material removal. The Y1-Axis movement of the horizontal wheel head, coupled with its ±90° rotation angle, allows for versatile grinding on both flat and angled surfaces. The adjustable spindle speed range of 700–1200 rpm provides flexibility in machining different materials and achieving superior surface finishes.
Key features of the grinding system include:
Grinding wheel speed: 700–1200 rpm, adjustable for different materials and grinding tasks.
Gantry frame: Ensures rigidity, reducing vibration for consistent grinding quality.
Hydrostatic guide rails: Reduce friction for smoother operations, extending machine life.
Whether you're working with tough metals or soft alloys, the KSL-1550N delivers superior performance for a variety of industrial applications.
After-sales support includes:
One-year warranty for peace of mind.
48-hour emergency response to keep your operations running smoothly.
Technical upgrade support to keep your machine up to date with the latest advancements in grinding technology.
Lifetime maintenance to ensure the longevity of your investment.
Our international presence ensures that no matter where you're located-in the U.S., Vietnam, Thailand, Turkey, or Russia-our experienced technicians are ready to assist.
FAQ: Guide Rail Grinder KSL-1550N
Q1: What industries use the KSL-1550N?
A: The KSL-1550N is ideal for industries such as aerospace, automotive, energy, and heavy machinery, where high-precision grinding of machine tool guide rails is critical.
Q2: Can the machine be customized?
A: Yes, we offer OEM/ODM solutions for customized specifications, including different workbench sizes and spindle configurations.
Q3: How long will the KSL-1550N last?
A: With proper maintenance, the KSL-1550N is designed to deliver reliable performance for many years. We offer lifetime maintenance to help ensure its longevity.
Q4: Do you offer support for international customers?
A: Yes, we offer remote technical support, as well as localized manuals and training for our customers in all export regions.
